PCD Inserts Cutting Laser Cutting Machine CHNTOP
Quick Details
1. The whole machine consist of machine tool, motion parts, electrical equipment control parts, and other assist parts.
2. Adopt precision gear rack transmission mode to ensure highly dynamic performance;
3. Multiple intelligent sensor modules greatly improve personnel safety and effect of equipment protection
4. Integrated design is better for delivery, easy to operate, greatly shorten the testing time
5. Equip large-size, multi-functional display to make operation more convenient
Description:
Based on marketing and customized requirements, the economic fiber laser cutting machine launched. It replace by expensive fiber laser and past YAG laser. And widely used for PCD/ PCBN/ CVD/ Sapphire/ PDC/ND/MD/ Carbide/ Ceramic material high precision cutting.
The machine with a confined working space,which improves the dust removal effect and avoid light pollution.
Specifications:
| Technology Parameters |
| Laser Source |
Fiber |
| Control system |
X/Y/Z high precision worktable with rotary A axis |
| Software system |
Based on Windows R&D control system |
| Monitor system |
CCD same axis monitor |
| Laser head |
Special laser head |
| Focus system |
High resolution laser sensor |
| Body |
Marble Body base |
| Electric Power |
380v-3phase-5wires 50HZ |
| Power |
6KW |
| Laser Power |
3000W |
| Worktable |
220*220*100mm(x*y*z) |
| A Axis rotation angle |
±30°(can cut relief angle) |
| Repeating Position Accuracy |
≦0.005mm(stepping system) |
| ≦0.003mm(servo system) |
| Load |
≦15KG |
| Max speed |
600mm/min |
| Kerf Width |
≦0.10mm |
Applications:
This machine is mainly suitable for cutting ultra-hard materials(PCD/ PCBN/ hard alloy),also applicable to materials that cannot be processed by wire cutting.
Product Tags:
|
|

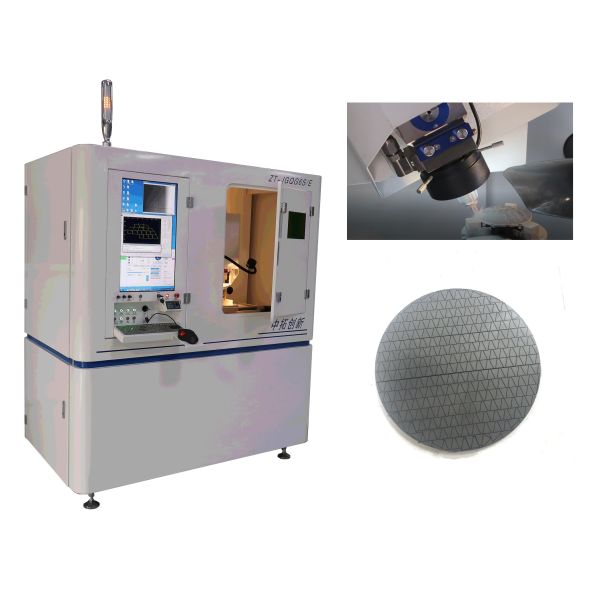

PCBN CNC Fiber Laser Cutting Machine Images
|
